COMPACT SUNPHOTOMETER

The Middleton SP02 Sunphotometer consists of four narrow-bandpass spectro-pyrheliometers, axially aligned in a sealed enclosure.
spacer
pdf icon Datasheet spacer pdf iconManualspacerAsk icon Ask spacer tick icon Distributors spacer tick icon Price List


SP02:      AUD12100
SP02-L:  AUD12500
spacer
Print icon Print this page

spacer

PRODUCTS -> SP02 COMPACT SUNPHOTOMETER

spacer
spacer


COMPACT SUNPHOTOMETER

The Middleton Solar SP02 Sunphotometer is a simple low-cost instrument for the determination of the spectral optical depth of the atmosphere. It can be configured for total & aerosol optical depth measurement, column ozone measurement, and assessment of water vapour amounts. It consists of four precision spectro-pyrheliometers axially aligned in a sealed enclosure. The SP02-L version has a narrower field of view to diminish light scatter from the sun aureole in locations that have a high aerosol load, such as northern Europe.

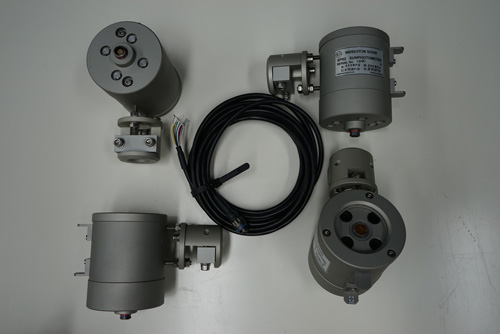

SP02

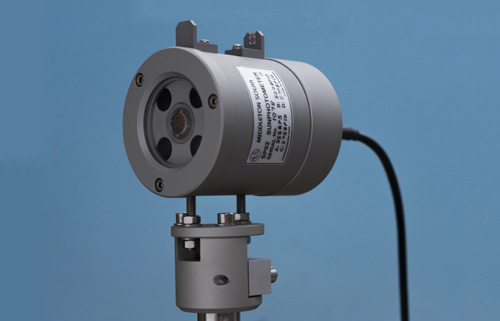

 SP02

Performance Specification

SP02

SP02-L

field of view

5.0

2.5

slope angle

1.6

0.7

limit angle

3.5

1.8

output signal x 4 channels

-0.05 to +4.5 VDC max.



resolution

<0.005OD (Langley method)



response time

0.2s to 99%



operating temperature

-30C to +70C





EXCELLENT STABILITY, COMPACT, RELIABLE

Four channels operate simultaneously.

Large 25mm interference filters for long-term stability.

Negligible temperature error.

Excellent Optical Depth resolution.

Use the AST-02 Active Solar Tracker to aim the SP02 at the sun.
