SOLAR TOTAL PYRANOMETER

FAST RESPONSE Class B and Class A Hemispherical Solar Measurement.

ER08-S, ER08-SE, ER08-SC Solar Total Pyranometers.

ER08-S: $2900 AUD, Class B
ER08-S: $3160 AUD, Class A
ER08-SE: $3225 AUD, Class B
ER08-SC: $3520 AUD, Class B
Available: NOW

Pdf iconDatasheet spacerPdf iconManualspacerAsk iconAsk spacerDistributor iconDistributors spacerCurrency converter iconPrice List


FAST RESPONSE SPECTRALLY FLAT PYRANOMETER

Very fast response time is ideal for solar Photovoltaic Power Plant monitoring.

The ER08-S Pyranometer features an innovative new design of detector with very low zero off-set and fast thermopile response to give reduced measurement uncertainty in comparison to conventional pyranometer designs that use an exposed blackened thermopile. The detector incorporates a cosine-corrected entrance aperture, a compact integrating cavity, and an encapsulated thermopile with a Field-Of-View restricted to the cavity.

The Middleton Solar ER08-S exceeds the ISO 9060:2018 specifications for a Fast Response Spectrally Flat Pyranometer of Class B or Class A. The ER08-SE version has an in-built amplifier with a millivolt output for easy signal measurement. The ER08-SC version has a 4-20mA current output.

The EV2-H Ventilator/heater Unit is available to combat dew formation.

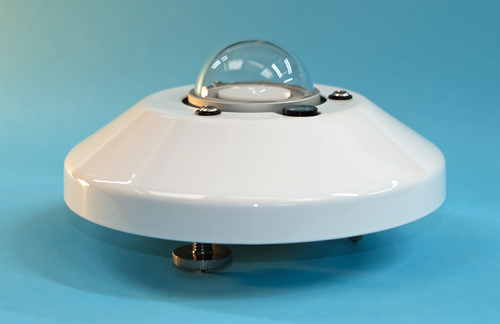

 ER08-SE

Performance Specification

ISO9060:2018    Fast Resp. Class A

ER08-S, SE, SC (typical)

Response time (to 95%)

< 0.5s

0.3s

Zero off-set: a) -200 W.m-2

+ 7 W.m-2

< ± 0.2 W.m-2

                       b) 5K.h-1

± 2 W.m-2

< ± 0.2 W.m-2

Non-stability (per year)

± 0.8%

< 0.1%

Non-linearity

± 0.5%

< ± 0.2%

Directional response

± 10 W.m-2

± 10 W.m-2

Spectral error (0.28 to 4.0μm)

± 0.5%

< ± 0.4%

Temperature response

± 1%

< ± 1%

Tilt response (0-90°)

± 0.5%

< 0.2%


ALMOST NO ZERO OFF-SET - VERY FAST RESPONSE

Reduced Measurement uncertainty because hidden off-sets are insignificant.

Single glass dome gives lower directional error than conventional double dome design.

Cable has connector at instrument end.
